Managing API users

One of the main aims of Actito is to offer you a great level of connectivity in your marketing approach. That is the reason why we invest our efforts in making possible the exchange of data between Actito and other systems specific to your activities.

The available public APIs allow you to interact with Actito without having to do it through the Actito interface.

Using an API requires a specific user account, different from the access account for the interface.

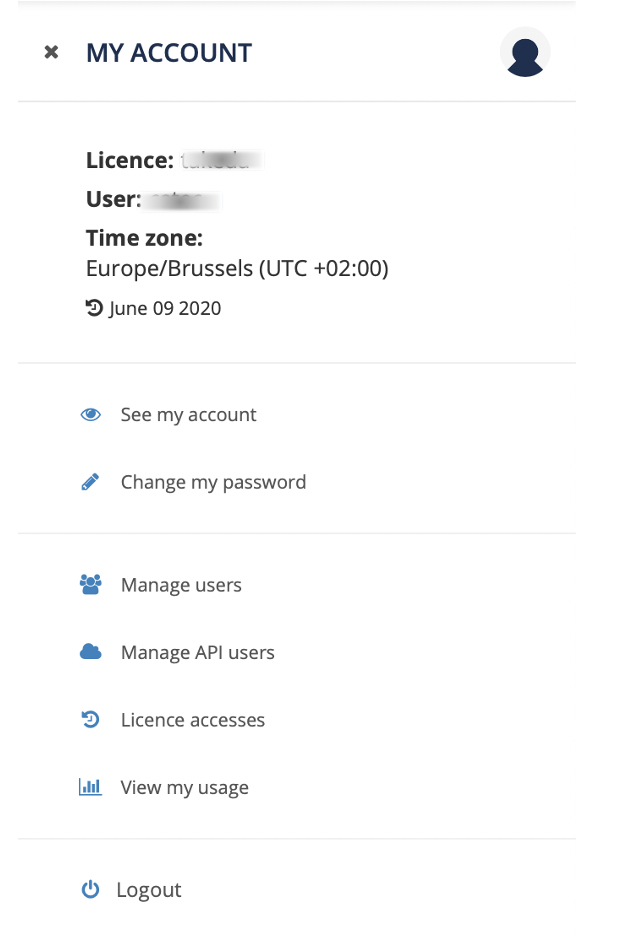

Your license's adminUser can create this type of accounts directly from the app "Manage API users".

images/download/attachments/636485845/image2020-6-9_8-28-46.png

Creating an API user

On the app's start screen, you will see all the existing API users.

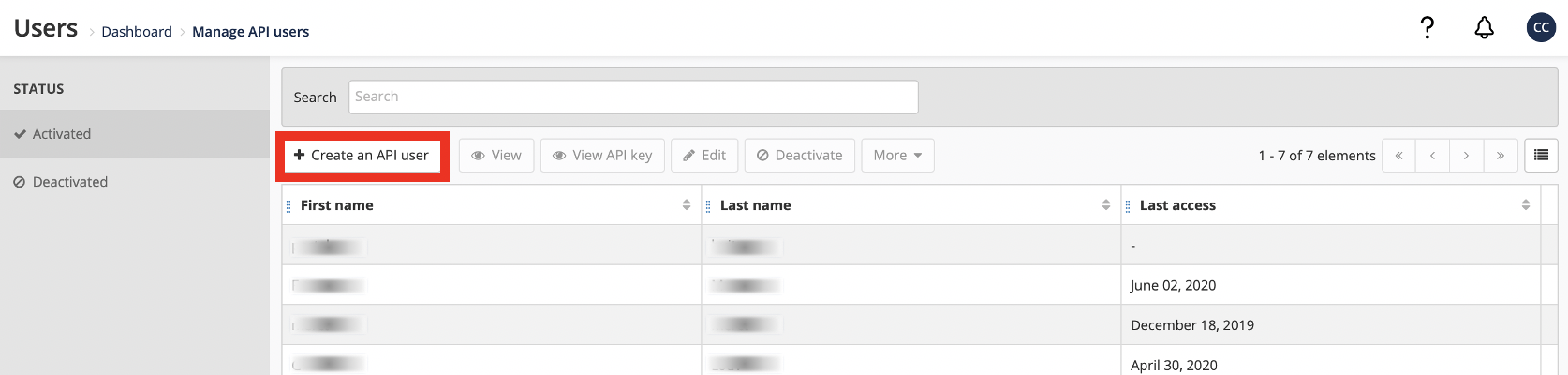

To create a new one, click on "+ Create an API user".

images/download/attachments/636485845/image2020-6-9_8-31-18.png

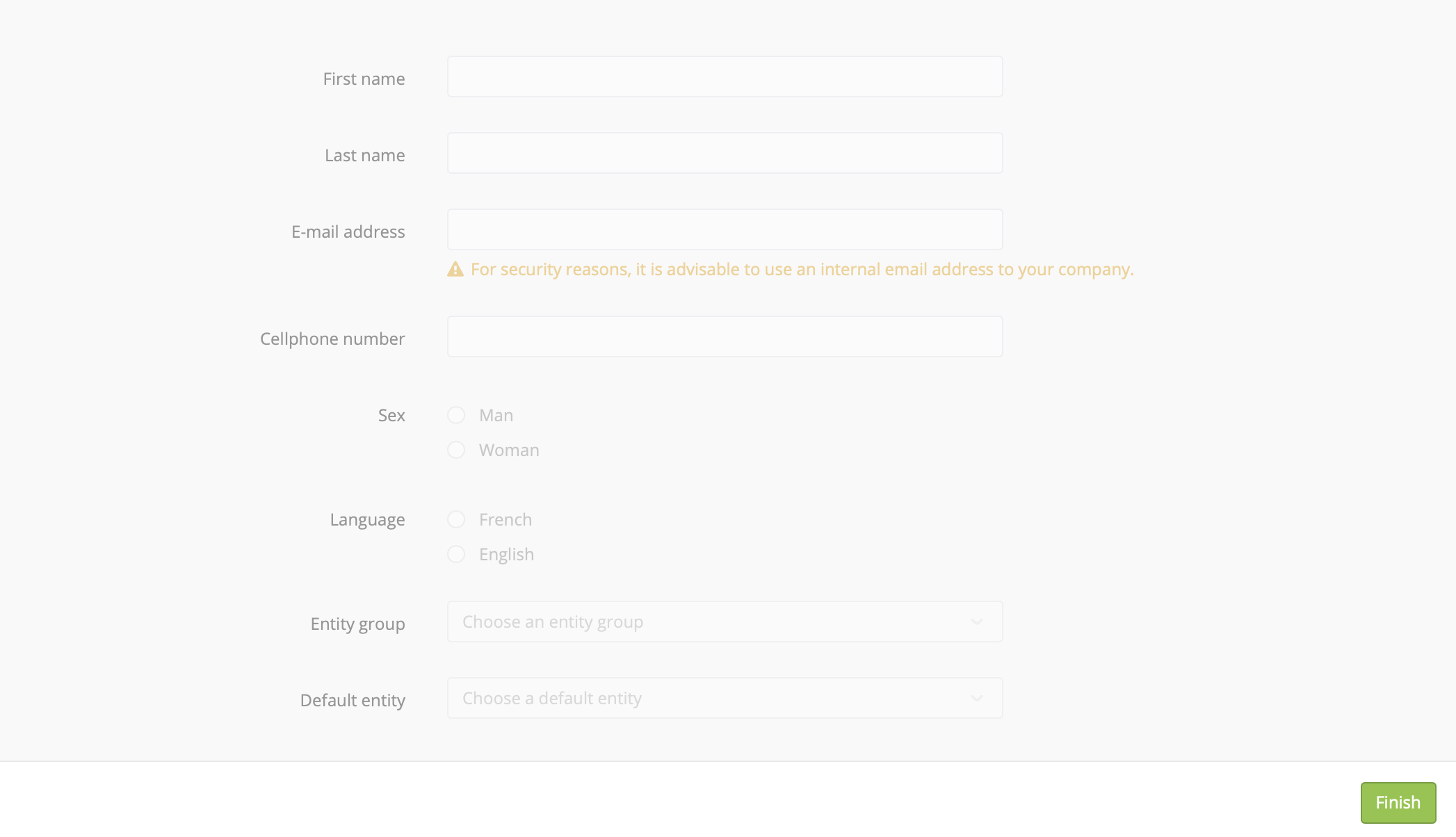

Next, fill in the information for the new API user:

  • First name and last name

  • E-mail address

  • Cellphone number

  • Language and Sex

  • Entity parameters

images/download/attachments/636485845/image2020-6-9_8-32-14.png

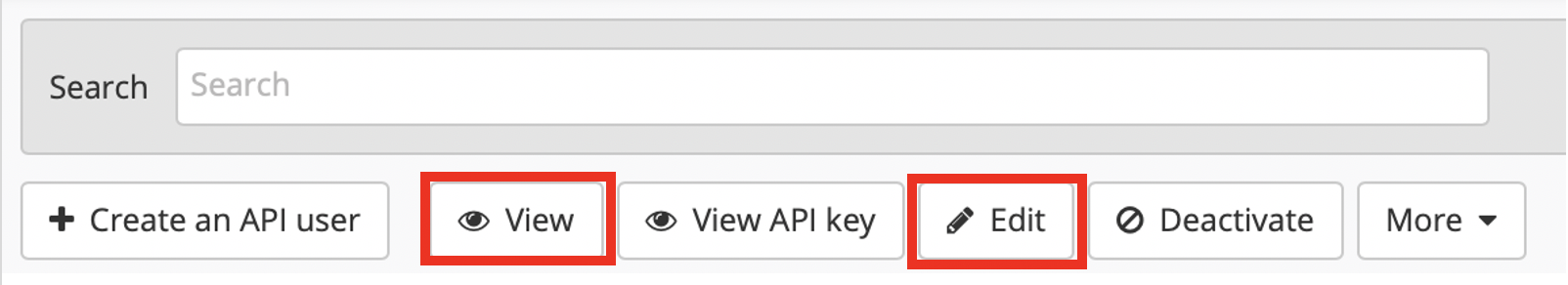

Once the user has been created, you can always access the user contact data by clicking on "View". You can also modify the contact data by clicking on "Edit".

images/download/attachments/636485845/image2020-6-9_8-34-34.png

View the API key

The authentication generated by the "Manage API users" app is done through an API key-based system. This system offers a greater level of security and autonomy than the access with basic authentication that the Actito support team used to create before.

Authentication through an API key gives you direct control on the API management, which will not depend on a password that, if reset, could have an impact on your integrations.

Note

All API users with basic authentication will keep on working. However, every new API user must be created with API key-based authentication.

To see an account ID, click on "View API key".

images/download/attachments/636485845/image2020-6-9_8-35-20.png

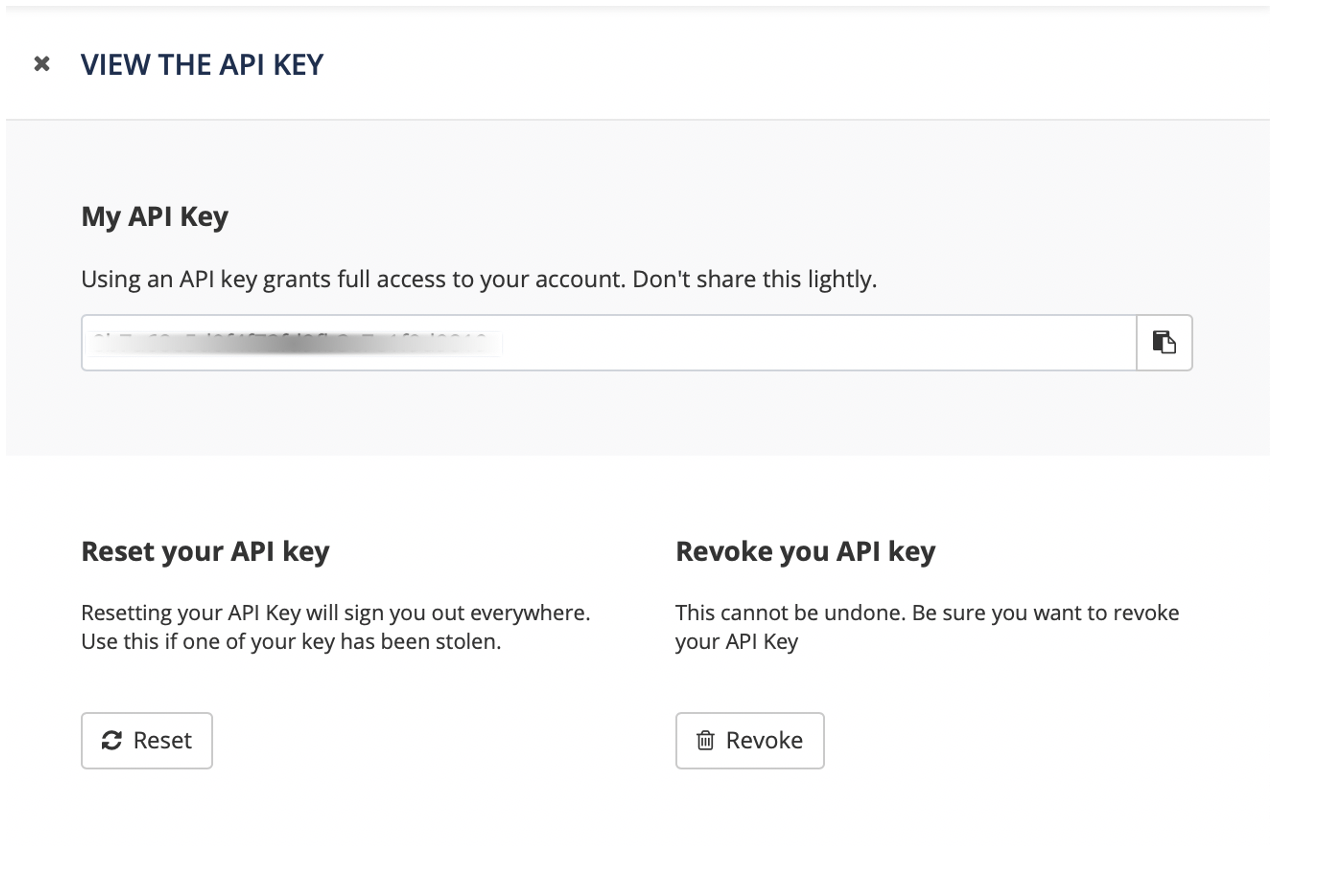

The API key is a character string that your IT team can use to connect to the API. With the button at the right, you can directly copy the key to share it with the relevant people.

images/download/attachments/636485845/image2020-6-9_8-36-56.png

Securing the key

Your license API keys will only be available from the "Manage API users" app. This app is only accessible for users with the "AdminUser" rights configuration.

This means that only the license administrator will have control over the API users, who are usually members of the internal IT team or external providers. The information required to create an API account includes the user's e-mail address and the phone number so that the license administrator can communicate the key through a secured channel.

An API key is enough to connect and it is not linked to a password. In this way, there is no risk that the credentials will be lost or forgotten, for it will be always stored on the "Manage API users" app.

However, there are different ways to block the access of an API key.

Resetting the key

Resetting the key allows you to cut off its access if it has been compromised. This action will interrupt all the existing API calls. A new secure key will be generated right away so that you can set up again the legitimate calls.

Revoking the key

Revoking a key means deleting it. It will no be valid anymore, including the existing calls.

A revoked key cannot be recovered.

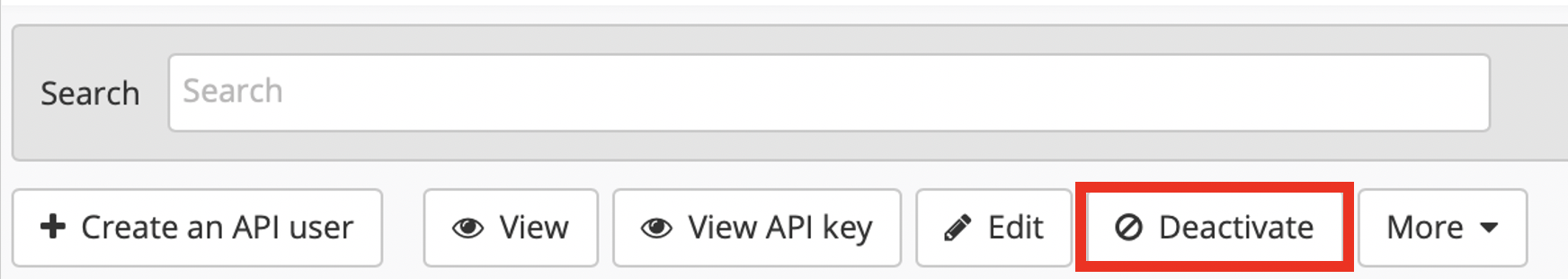

Deactivating a user from the app's main menu will have the same effect. The user will then appear in the deactivated users' tab. In the event of reactivating a deactivated account, it will be necessary to reset the user key.

images/download/attachments/636485845/image2020-6-9_8-37-43.png

Deleting a user

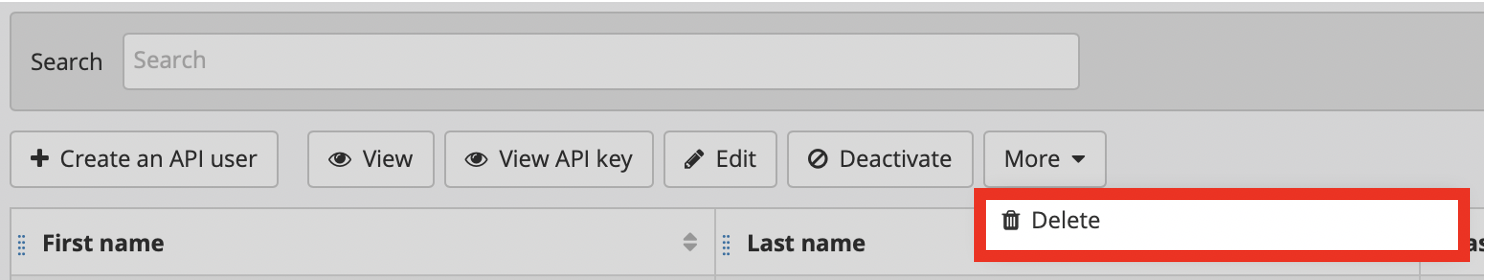

It is also possible to completely delete a user through the buttons "More" and "Delete".

images/download/attachments/636485845/image2020-6-9_8-39-1.png

Attention

Resetting, revoking, and deleting a key will disconnect all the API calls set up with that key.

Using the API key

When setting up an API, the key is not used directly as an identifier.

The key is used to generate an access token that will be valid for a limited time (15 minutes) and that you must include in all your calls.

For example, to generate a token in the TEST environment, the call will be

GET https://apitest.actito.com/auth/token

with the API key in the "Authentication" header.

GET Token
curl
-X GET 'https://apitest.actito.com/auth/token' \
-H 'Authorization: qhdfbvdh747R49FRHrthqhdfbvdh74' \
-H 'Accept: application/json'

The token generated can be used for the authentication of calls during the following 15 minutes. It must be passed as a 'Bearer' Authorization in every call.

Exemple Bearer Token
curl
-X GET 'https://apitest.actito.com/v5/entities/MyEntity/etls' \
-H "Authorization: Bearer eyJhbGciOiJSUzI1NiJ9.eyJqdGkiOiI0IiwiaWF0IjoxNTg2ODY1MjE1LCJpc3MiOiJhY3RpdG8iLCJleHAiOjE1ODY4NjYxMTUsImxpY2VuY2VJZCI6MTI3NDAsImFjY291bnRJZCI6MTIsInBvbCI6Im1haW5Qb2xpY3lBcGkiLCJzdWIiOiI2ZWY3YjZmYS0wYTc1LTQ1YTYtYmE5My1iZGY5MmUyZjg3NDAifQ.umizXm0TueN6jRkMCaz9AnQP30qNxud5XIxnZiPzz24L8Aon7WKeJ8_49xcjsTe_v13nv4AI9991Mw_k9bvQffT__eikkv9UMmZ22wvQr5UxCH5Y-NkxFRctEGLjmkEdFFe2EuOkF1GjsIetPrJgY-_L6bpoa3G0o69IWavBIFowQtw_q0FOPaZ_JtBLiDiFH59IM5s4-8S-QAhGkGgjOhTzqBTyDBGj8cqnhvr9eFwgoxGSAZ1QLGU5yTRyIJm8Uaq97M5UhKn98ixK4oQhQvVKwW9MDgGyf0jLFLEFO7l9kyFON34OsxiTyK58U_OFJzehgxqRokBE3wXWo9rKEA" \
-H 'Accept: application/json'

Tip

For more information about the URL used to generate the token in the different environments, or about authentication in a broader sense, there is an article about it in our technical documentation that your IT team might find helpful.

API key-based authentication is compatible with versions 4 and 5 of our public API.

Restricting the IP address

For additional security, you have the possibility to associate the API key to a specific IP address (or a range of IPs).

Activate the "Advanced parameters" when you create a new API user or edit an existing one to restrict the use of the key to a specific IP.

images/download/attachments/636485845/image2021-8-4_10-57-54.png

If an API request is intercepted from an unauthorized IP, it will be rejected and a warning will be sent to the e-mail address associated with the key.

The restriction can either be defined as a simple IP address or as a CIDR address (subnet).

In the latter case, the range must be provided with the format IP + CIDR.

For example, to put a restriction on IP 192.168.1.1 with a subnet mask of 255.255.255.248, the value that should be provided in the restriction would be 192.168.1.1/29


CIDR - Subnet correlation table

CIDR

Available bits

Subnet mask

Number of hosts per subnet

/1

31

128.0.0.0

2^31^-2 = 2 147 483 646

/2

30

192.0.0.0

2^30^-2 = 1 073 741 822

/3

29

224.0.0.0

2^29^-2 = 536 870 910

/4

28

240.0.0.0

2^28^-2 = 268 435 454

/5

27

248.0.0.0

2^27^-2 = 134 217 726

/6

26

252.0.0.0

2^26^-2 = 67 108 862

/7

25

254.0.0.0

2^25^-2 = 33 554 430

/8

24

255.0.0.0

2^24^-2 = 16 777 214

/9

23

255.128.0.0

2^23^-2 = 8 388 606

/10

22

255.192.0.0

2^22^-2 = 4 194 302

/11

21

255.224.0.0

2^21^-2 = 2 097 150

/12

20

255.240.0.0

2^20^-2 = 1 048 574

/13

19

255.248.0.0

2^19^-2 = 524 286

/14

18

255.252.0.0

2^18^-2 = 262 142

/15

17

255.254.0.0

2^17^-2 = 131 070

/16

16

255.255.0.0

2^16^-2 = 65 534

/17

15

255.255.128.0

2^15^-2 = 32 766

/18

14

255.255.192.0

2^14^-2 = 16 382

/19

13

255.255.224.0

2^13^-2 = 8 190

/20

12

255.255.240.0

2^12^-2 = 4 094

/21

11

255.255.248.0

2^11^-2 = 2 046

/22

10

255.255.252.0

2^10^-2 = 1 022

/23

9

255.255.254.0

2^9^-2 = 510

/24

8

255.255.255.0

2^8^-2 = 254

/25

7

255.255.255.128

2^7^-2 = 126

/26

6

255.255.255.192

2^6^-2 = 62

/27

5

255.255.255.224

2^5^-2 = 30

/28

4

255.255.255.240

2^4^-2 = 14

/29

3

255.255.255.248

2^3^-2 = 6

/30

2

255.255.255.252

2^2^-2 = 2

/31

1

255.255.255.254

2^1^-0 =2

/32

0

255.255.255.255

2^0^-0 =1

Tip

Keep in mind that an IP restriction is ideal to restrict the access only from your machines with a fixed IP, but less so if the key will be used for manual testing/implementation by human users with dynamic IPs.
